INDUSTRY Polarization microscopes

편광 현미경

iScope materials science (polarization)



Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials.Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes

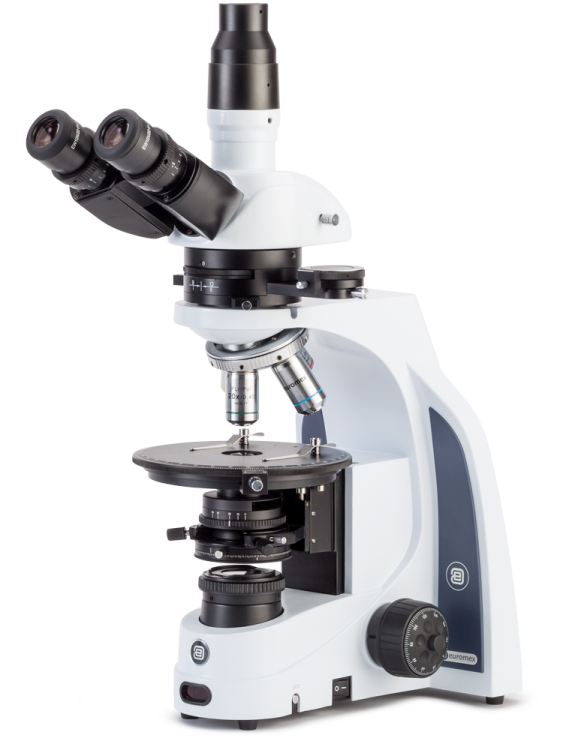

iScope for polarization

The iScope microscope are supplied with specific attachments that turn the iScope into a state-of-the art material science microscope suitable for various applications. There are three types of materials science microscopes; Metallurgical and polarization microscopes and microscopes specially for asbestos indentification




Highlights

  • Binocular and trinocular models
  • EWF 10x/20 mm and EWF 10x/22 mm eyepieces
  • Reversed quintuple revolving nosepiece
  • Infinity corrected IOS objectives
  • 216 x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Ø 160 mm rotatable round stage
  • Ø 160 mm rotatable round stage
  • Ø 160 mm rotatable round stage


Models




Specifications

EYEPIECE(S)
The metallurgical models are supplied with extended EWF 10x/20 mm (Ø 23.2 mm tube) eyepieces. Polarization models are supplied with a pair of EWF 10x/22 mm (Ø 30 mm tube) eyepieces, one eyepiece with cross hair and one eyepiece with a cross hair and micrometer reticle. Specific models for asbestos identification are supplied with HWF 12.5x/15 mm (Ø 30 mm tube) eyepieces and a Walton-Beckett reticle

HEAD
Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm. Two ± 5 diopter adjustments. A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm). The trinocular head 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x or 0.5x objective

NOSEPIECE
Revolving quadruple reversed nosepiece on ball bearings

OBJECTIVES
Plan PLPOLi strain free infinity corrected objectives for polarisation. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput




STAGES
Ø160 mm stage, 360° rotatable
An optional 30 x 40 mm X-Y mechanical stage is available (IS.9522)

CONDENSER
Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° rotatable polarizer

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

DIASCOPIC ILLUMINATION
Intensity adjustable 3 W Köhler NeoLED illumination with internal 100-240 V power supply. The larger aperture of NeoLED allows the optical systems of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits for choosing the NeoLED are the low energy consumption, no heating and a long operating lifetime. The Köhler setting provides homogeneous illumination and high contrast

REFLECTED ILLUMINATION
Polarization models are equipped with a 50 W 12 V halogen epi-illumination and external 100-240 V power supply. Supplied with 360° rotatable polarization filter, analyzer, Bertrand lens, 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge, sliders with green/blue and whiter/polarizer filter

ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS – CABLE STORAGE SYSTEM
iScope allows users to easily insert the power cable into the backside of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensure the safe transportation of the microscope

CONFIGURATIONS
The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types.

• Do you want to see the standard models?
• Do you want to see the phase contrast models?
• Do you want to see the polarisation models?
• Do you want to see the darkfield models?
• Do you want to see the fluorescence models?

PACKAGING
Supplied with power cord, dust cover, spare fuse where available and user manual. All packed in polystyrene boxes

Accessories

IS.6210
EWF 10x/22 mm eyepiece, Ø 30 mm tube
IS.6210-CM
EWF 10x/22 mm eyepiece with 10/100 micrometer and cross hair, Ø 30mm tube
IS.6215
WF15x/16 mm eyepiece, Ø 30 mm tube
IS.6220
WF20x/12 mm eyepiece, Ø 30 mm tube
IS.6299
Pair of eyecups, Ø 30 mm tube
IS.7904
Plan strain-free PLPOLi 4x/0.10 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7910
Plan strain-free PLPOLi 10x/0.25 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7920
Plan strain-free PLPOLi 20x/0.40 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7940
Plan strain-free PLPOLi 40x/0.65 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7960
Plan strain-free PLPOLi 60x/0.85 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7900
Plan strain-free PLPOLi 100/1,25 IOS objective for iScope transmitted polarisation, 0.17 mm cover glass corrected
IS.7905-R
Plan strain-free PLPOLi 5x/0.10 IOS objective for iScope reflected polarisation, no cover glass correction
IS.7910-R
Plan strain-free PLPOLi 10x/0.25 IOS objective for iScope reflected and transmitted polarisation, 0.17 mm cover glass corrected, no cover glass correction
IS.7920-R
Plan strain-free PLPOLi 20x/0.40 IOS objective for iScope reflected and transmitted polarisation, 0.17 mm cover glass corrected, no cover glass correction
IS.7950-R
Plan strain-free PLPOLi 50x/0.65 IOS objective for iScope reflected and transmitted polarisation, 0.17 mm cover glass corrected, no cover glass correction
IS.7900-R
Plan strain-free PLPOLi 100/1,25 IOS objective for iScope reflected and transmitted polarisation, 0.17 mm cover glass corrected, no cover glass correction
IS.9602
Analyzer for reflected illumination attachment of iScope polarisation models
IS.9604
Quartz wedge in slider for transmitted illumination of iScope polarisation models
IS.9608
360° rotatable polarizer in slider for transmitted illumination of iScope polarisation models
IS.9610
1/λ plate first red 530 nm in slider for transmitted illumination of iScope polarisation models
IS.9612
λ/4 retardation plate in slider for transmitted illumination of iScope polarisation models
IS.9618
Bertrand lens for transmitted polarisation attachment of iScope
IS.9700
Blue opaque filter 45 mm for lamp house of iScope
IS.9704
Yellow opaque filter 45 mm for lamp house of iScope
IS.9706
White opaque filter 45 mm for lamp house of iScope
SL.5500
NeoLED™replacement unit for iScope
IS.9993
NeoLED™replacement unit for iScope
AE.5130
Universal Ø 23.2 mm tube adapter with built-in 2x lens for SLR photo camera with APS-C sensor. Needs T2 adapter
AE.5025
T2 ring for Nikon D SLR digital camera
AE.5040
T2 ring for Canon EOS SLR digital camera
PB.5155
Microscope slides 76 x 26 mm, ground edges, 50 pieces
PB.5165
Cover glasses 18 x 18 mm, 0,13-0,17 mm, 100 pieces
PB.5168
Cover glasses 22 x 22 mm, 0,13-0,17 mm, 100 pieces
PB.5255
Immersion oil, 25 ml. Refraction index n = 1,482
PB.5274
Iso propyl alcohol 99%, 200 ml
PB.5275
Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabs
